PCBA contract manufacturing
PCBA contract manufacturing covers board supply, parts purchasing, assembly and release inspection. WellPCB is a subsidiary of a corporate group; the Shenzhen PCBA factory is Shenzhen OurPCB Tech. LTD.
Published typical prototype lead times; the confirmed schedule depends on files, parts availability, quantity and test scope and is stated in the quotation.
Assembly and release decisions
| Decision | What to send | Who confirms |
|---|---|---|
| File release | One manifest with matching board, BOM, placement and drawing revisions; quantity and changes. | Name the buyer's release contact; ask the supplier to acknowledge the revision received. |
| Bare boards | Fabrication specification, acceptance class and standard revision. | Agree the board supplier and who checks boards and documents at the assembly handoff. |
| Components | Exact part numbers, customer-supplied parts, approved alternatives and shortages. | Name the purchasing and substitution contacts; agree remaining-material ownership. |
| Assembly and test | Assembly notes, test procedure, firmware, fixtures and pass/fail criteria. | Ask engineering to confirm feasibility and coverage; name who approves exceptions. |
| Shipment release | First-article review, inspection reports, barcode-linked records, destination and shipment contact. | Name the first-article and shipment approvers; match the site to its certificate scope. |
Use the RFQ checklist and release manifest — a list of files and versions approved for your build.
Routine SMT inspection and project-specific testing
On every applicable SMT board: 3D SPI, 3D AOI
As your project requires: X-ray, ICT. Send any functional-test requirement with your files for feasibility review.
INSIDE THE SHENZHEN PCBA FACTORY
Follow the assembly line.
Equipment and process facts for Shenzhen OurPCB Tech. LTD. Select a clip to play it in its tile.
All photographs and clips: Shenzhen PCBA factory (Shenzhen OurPCB Tech. LTD)

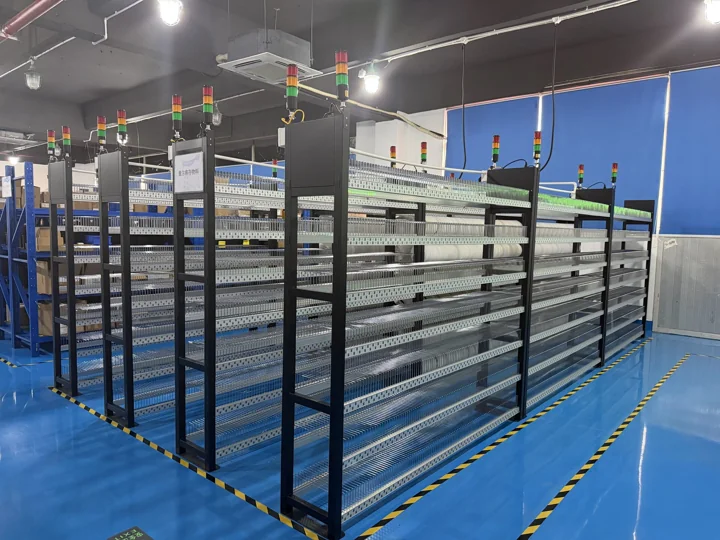

Storage and kitting
MES-linked smart storage supports first-in, first-out (FIFO) material handling.
Solder-paste printing
The factory has 11 solder-paste printers, including GKG G5-N; printing precedes SPI and placement.
3D SPI

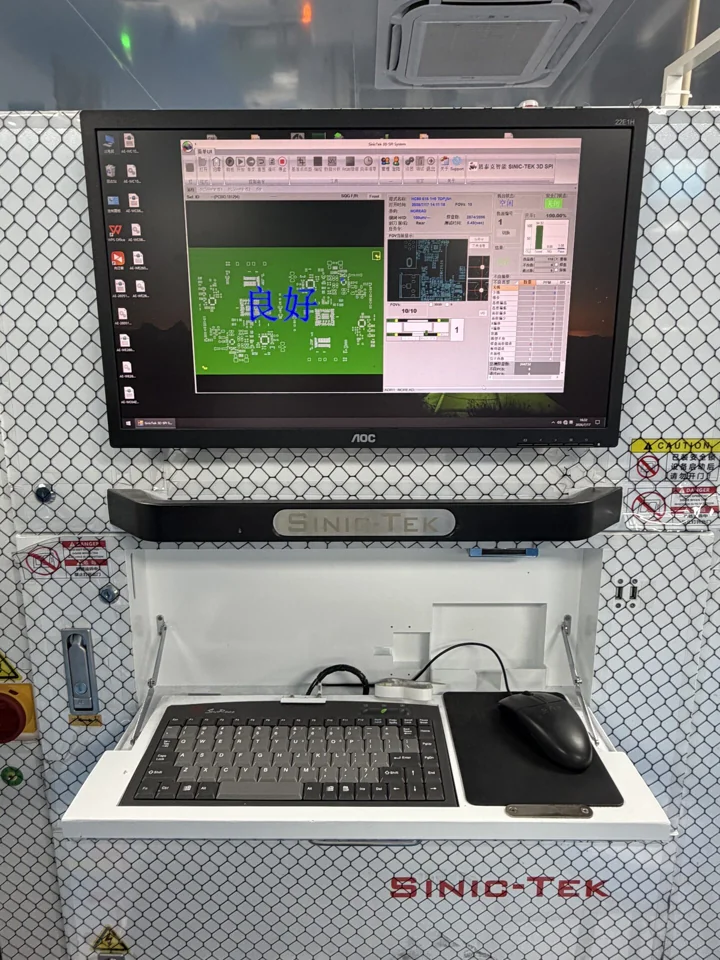

9 Sinic-Tek S8050 3D SPI units inspect solder paste before placement on every applicable SMT board.
Placement

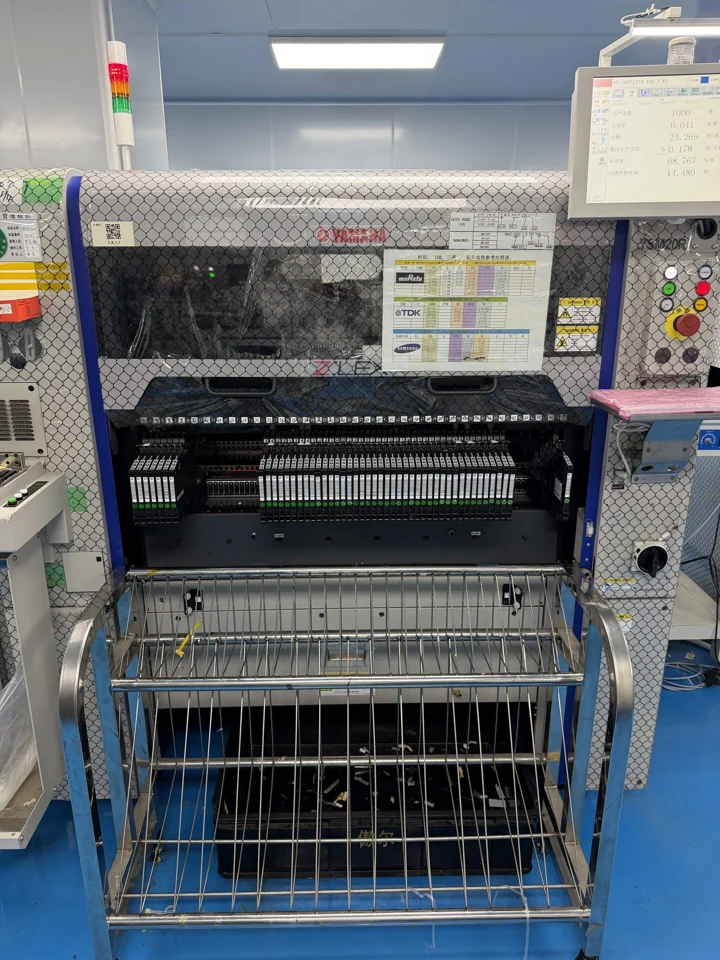

YAMAHA YSM20R-2 and YSM10 placers run 01005 imperial placement and package-on-package (PoP) with solder-paste dipping in stable volume production.
Placement details and microscope view
Equipment includes 10 sets of original YAMAHA 4 mm-tape feeders; measured coplanarity tolerance is ±0.03 mm.
Reflow
JT JTR-1000D-N nitrogen reflow: O2 500-2500 ppm. Used for automotive, medical, industrial-control and new-energy products. Send your nitrogen-reflow requirements for project review.

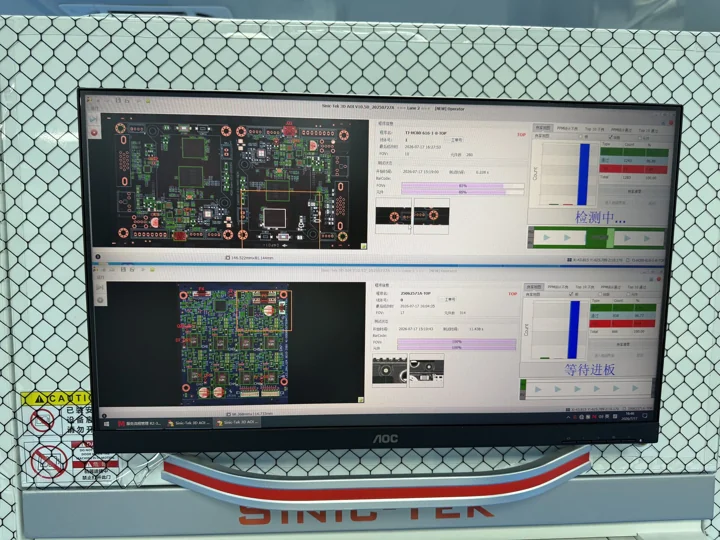

3D AOI
5 3D AOI units include Sinic-Tek A510D and Vewzoom Venus510D; the AI-assisted A510D links to MES.
Show the remaining 5 steps

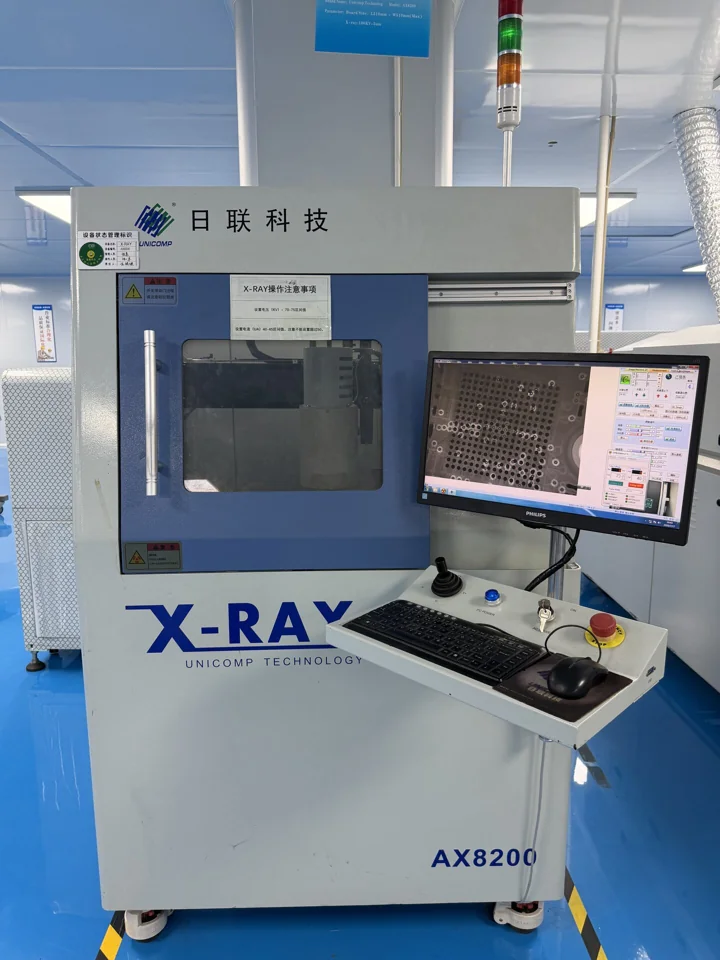

X-ray
One UNICOMP AX8200 X-ray unit and one TRI TR5001E ICT unit are available. Coverage is project-specific; specify locations, test preparation and acceptance criteria.

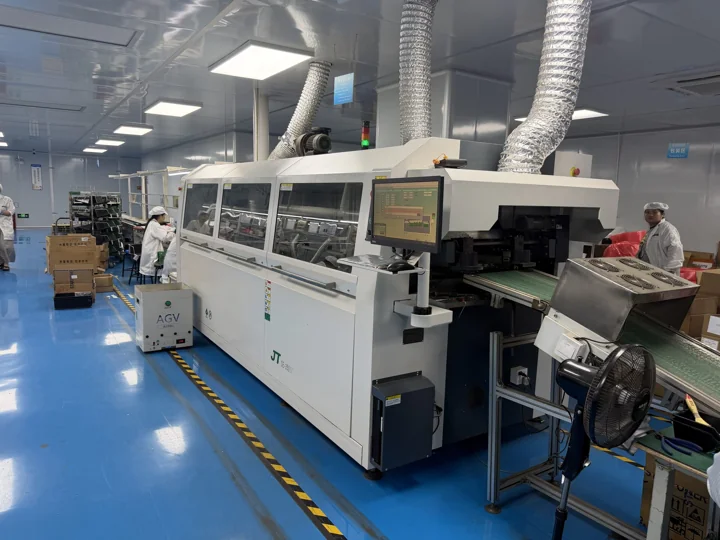

Wave soldering
Wave soldering is available; include through-hole requirements for process review.

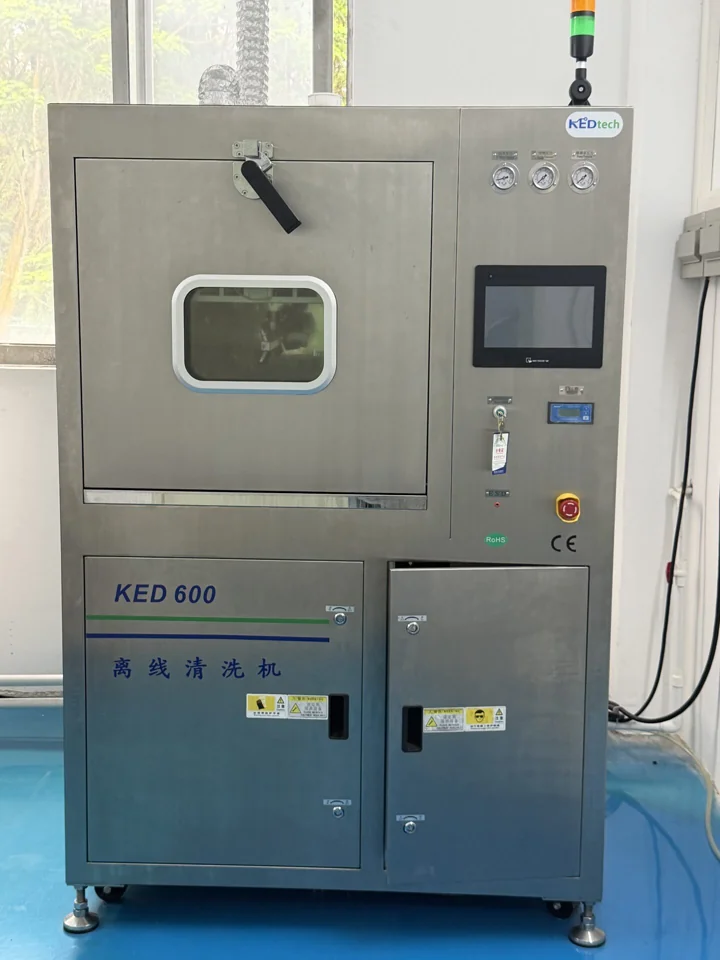

Ion-water cleaning
Ion-water cleaning is available, with visual acceptance at 60x/80x against a cleanliness acceptance standard. No ROSE or ion-chromatography reports are available.

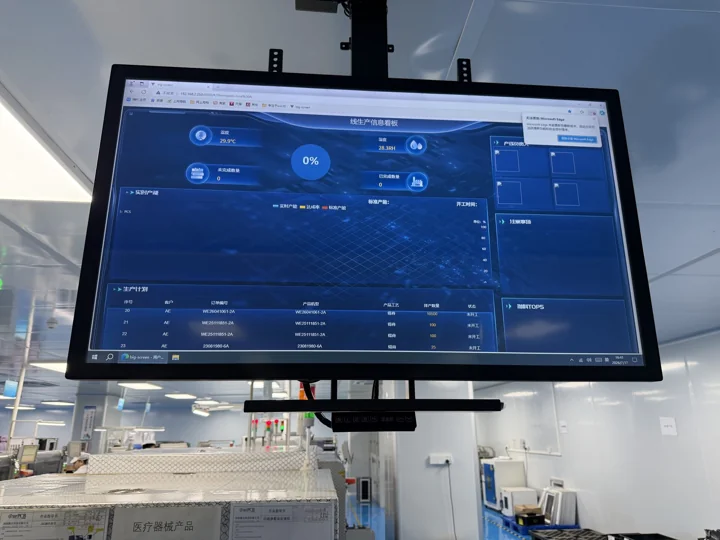

MES and traceability
MES supports unique-barcode traceability and material mis-load protection (scanning checks that the right reel is loaded), linked to smart storage.

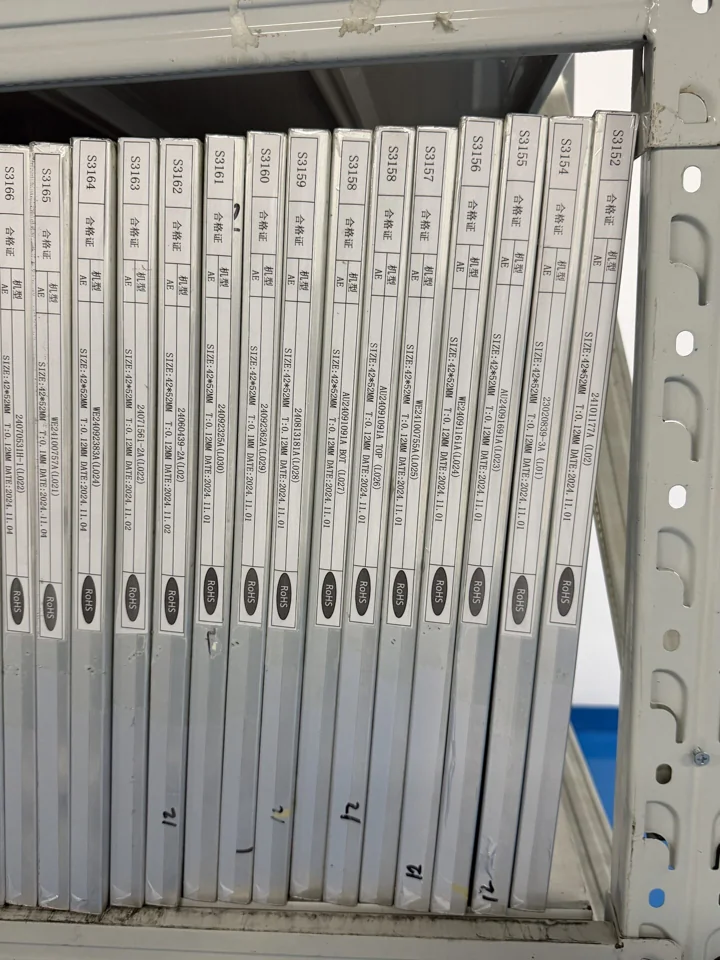

Stencils and fixtures
Labeled stencils are stored upright; confirm stencil, pallet and fixture requirements for your assembly.
Before your assembly enquiry
What quantities can I request?
WellPCB publishes 1–250 units with no minimum order quantity for low-volume assembly. For first-article and repeat-build decisions, see low volume PCB assembly.
How should I request an IPC class?
State the class and standard revision in your RFQ and drawing. We confirm what is achievable for your project before quoting.
Does the assembly certificate cover the bare boards?
Each certificate belongs to its named holder and scope. Shenzhen Uniwell Circuits Co., Ltd. is the Shenzhen fabrication holder; see PCB assembly China for the factory and quotation checklist.
